Bongo Nets

Ichthyoplankton and zooplankton production studies Oblique and vertical towing applications *Spatially correlated plankton studies

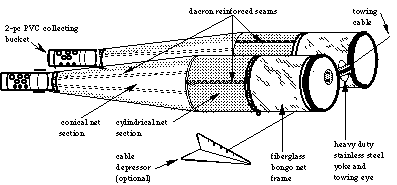

Bongo Ring Net -designed for long oblique tows -simple, cost effective alternative to MARMAP bongo net frames Unit Includes: *-stainless steel bongo net frame;* 20, 30, or 60 cm mouth diameter, stainless steel towing yoke accepts tow line and optional cable depressor *-two heavy duty Nitex® plankton nets;* available in most mesh size (see current price list for available sizes); 1:6 mouth to length ratio, nylon reinforced seams *-two PVC collecting buckets;* 2-pieces design with stainless steel fastners; lined with the specified Nitex® nylon; 750 ml ( 11.4 cm diam.) volume
CalCOFI Vertical Egg Tow (CalVET) Net -designed for long vertical hauls (70 m/min.) Unit Includes: *-PVC bongo net frame; 20, 30, or 60 cm mouth diameter; 50 cm length (6 mm wall thickness);* fiberglass and stainless steel construction; 20, 30, or 60 cm mouth diameters available; 50 cm tube length (6 mm wall thickness);

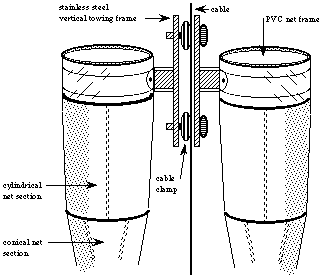

-stainless steel vertical tow frame; designed to reduce uneven net trajectory caused by ship drift and underwater currents; the frame has two cable clamps which attach to the tow wire and keep net openings perpendicular to towing direction (specify cable diameter) *-two heavy duty Nitex® plankton nets;* available in most mesh sizes (see current price list for available sizes); 50 cm long cylindrical section; conical section with 1:4 mouth to length ratio; nylon reinforced seams *-two PVC collecting buckets;* 2-piece design with stainless steal fasteners; lined with the specified Nitrex® nylon; 750 ml (11.4 cm diam.) volume
MARMAP Bongo Net -designed for long vertical hauls (70 m/min.) Unit Includes: *-PVC bongo net frame;* 20, 30, or 60 mouth diameter; 50 cm length (6 mm wall thickness) *-stainless steel vertical tow frame;* designed to reduce uneven net trajectory caused by ship drift and underwater currents; the frame has two cable clamps which attach to the tow wire and keep net openings perpendicular to towing direction (specify cable diameter) *-two heavy duty Nitex® plankton nets,* available in most mesh sizes (see current price list for available sizes); 50 cm long cylindrical section; conical section with 1:4 mouth to lenght ratio; nylon reinforced seams *-two PVC collecting buckets;* 2-piece design with stainless steel fasteners; lined with the specified Nitex® nylon; 750 ml (11.4 cm diam.) volume Options (All Models): -depressor weights -additional nets, buckets -custom sizes and modifications
