Larval Fish and Aquatic Macro Invertebrate & Larval Fish Light Traps

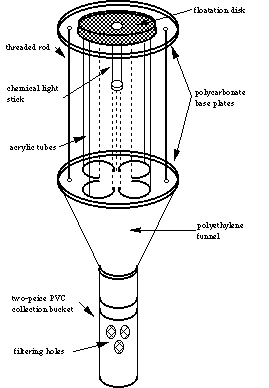

  • Passive sampling of a broad range of planktonic organisms
  • Compact, rugged design is suitable for lotic, lentic and hatchery environments
  • Modified design includes an alternative light source, collection assembly and floatation device

light trap

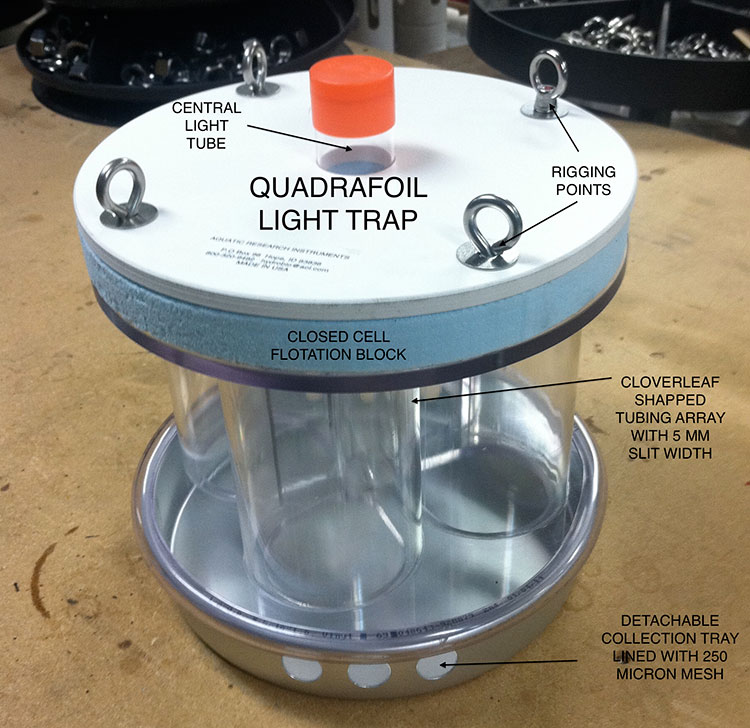

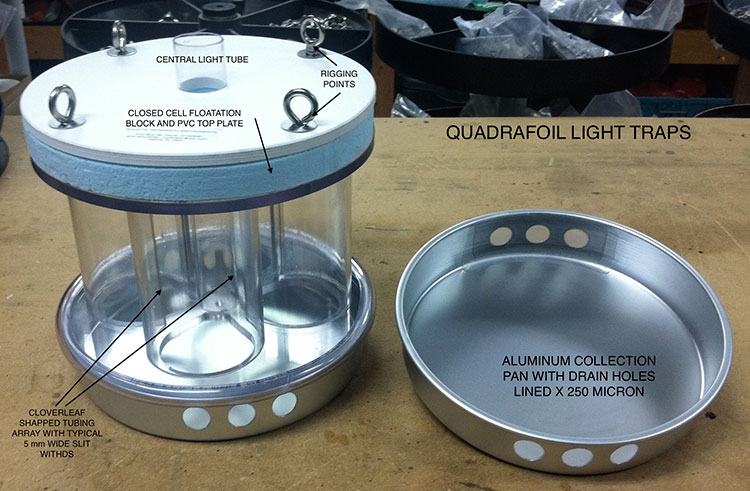

Quadrafoil Type Larval Fish Light Traps Acc. to Secor

  • Cloverleaf Shaped Array, 30 cm (diameter) x cm x 25 cm (Height) with four entry slits x 5 (+/- 1.5) mm wide.
  • Robust design, clear polycarbonate construction w/fixed slit width x 5 (+/- 1.5) mm wide (custom split widths available)
  • Collection Basin/Seive x 250 micron (or specify mesh size)
  • Top plate closed cell flotation block
  • Central light tube 20 mm diameter x 25 cm long with cap
  • Rigging hardware, one chemical light stick


Commonly Used Light Sources (Light Source Not Included):

  • Chemical Light Sticks
  • Squid Fishing Jigs
  • Waterproof flashlights
  • LED pool lights
  • COMPLETE UNIT: $360

Citations

Secor, D.H., J. Hansbarger, 1992. Modification of the quatrefoil light trap for use in hatchery ponds. Prog. Fish. Cult, 54:3, pp 202-205. Floyd, K.B., W.H. Courtenay, and R. D. Hoyt. 1984. A new larval fish trap: the quatrefoil trap. Prog. Fish Cult., 46:216-219. Ulrich, G.W., 1986. Construction of a compact submersible aquatic light trap. Pan-Pac. Entomol. 52:2, pp 144-149. Faber, D.J., 1990. A light trap to sample littoral and limnetic regions of lakes. Verh. Int. Ver. Theor. Limnol. 21:2.
