Russian Peat Borer

  • Paleoecological analysis of bog and salt marsh sediments
  • Collection of uncompressed cores in poorly decomposed woody peat
  • Shallow water applications


Russian Peat Borer Unit Includes:

  • stainless steel peat borer
    • 5.0 cm diameter X 50 cm (also 100 cm) long
    • one wall of the core tube is sharpened to longitudinally cut through sediments when sampler is turned clockwise
    • solid Delrin(r) core head and bottom point support a stainless steel cover plate which freely rotates inside the core tube
    • the stainless steel cover plate (2.0 mm thick) is curved and sharpened to minimize disturbance when inserted into the sediments
  • aluminum holobar extension rods
    • 40 mm diameter aircraft aluminum holobar construction, 7/8”- 9NC stainless steel threaded couplers, wrench flats (to aid uncoupling), lightweight, rigid and buoyant. Available in two (2) lengths: 1.2 ($105) and 2.4 m ($140)
  • Delrin and stainless steel
  • double shotgun

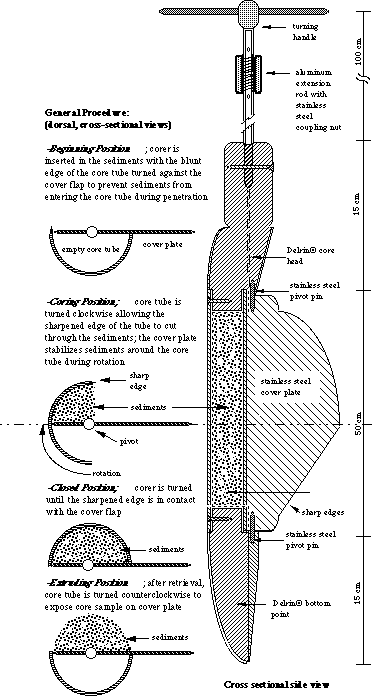

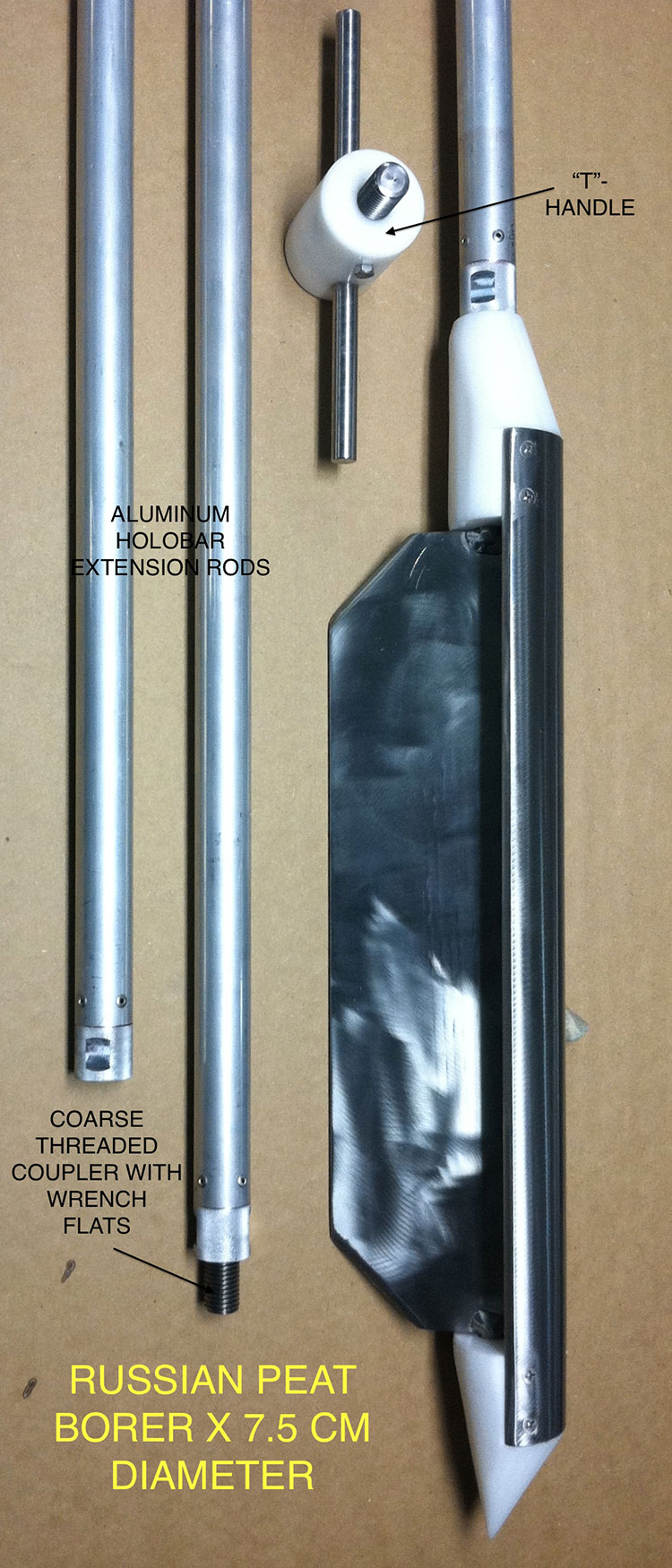

Notes: The Russian Peat Borer (7.5 cm x 60cm model shown) is a side filling chambered-type sampler. This discrete point sampler enables one to drive the sampler to any point in the sediment profile in the closed (empty) position.

Once the target depth is reached, the “T” handle is turned clockwise to initiate the sampling while the pivotal cover plate supports the cutting action of the bore. As the sampler is turned 180 degrees, the sharpened edge of the bore longitudinally cuts a semi-cylindrical shaped sample until the opposite side of the cover plate is contacted.

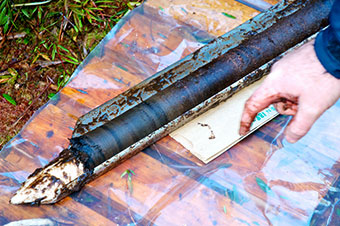

The contained sample can now be recovered without risk of contamination by overlying sediments. The sample is extruded from the bore by a counterclockwise rotation where sample rests on cover plate ready for sectioning.

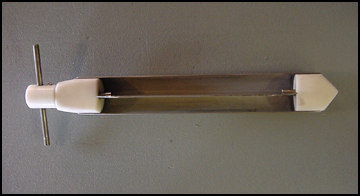

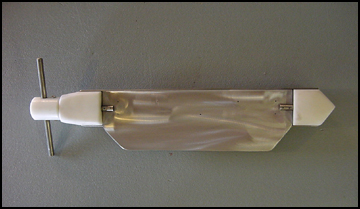

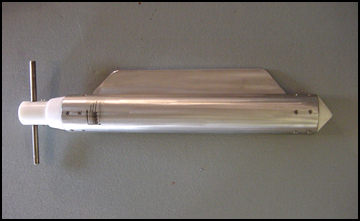

peat corer   peat corer   peat corer

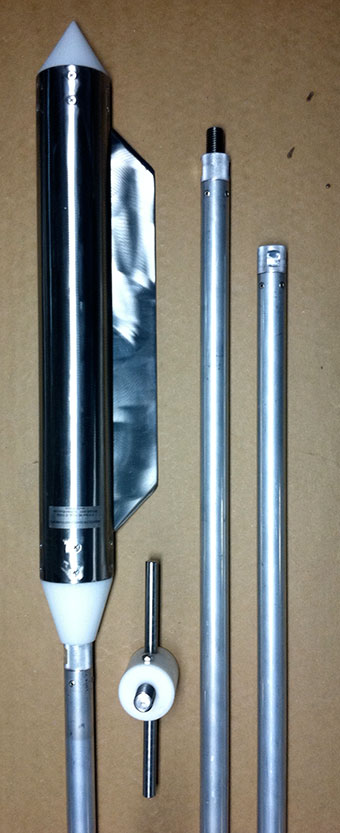

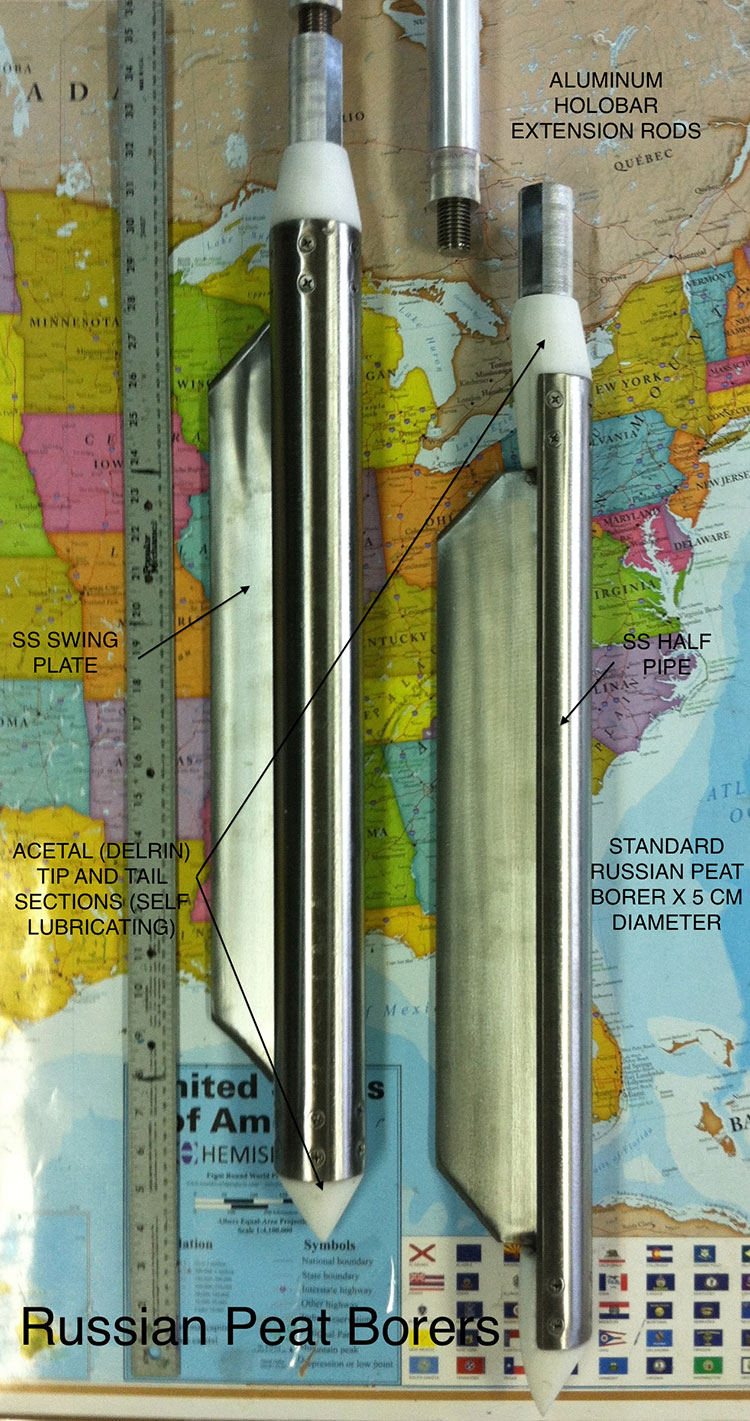

STANDARD RUSSIAN PEAT BORER

  • russian peat corerStainless steel and delrin construction
  • 5.0 cm x 50 cm diam.
  • turning “T” handle
  • 2-ea. Aluminum holobar extension rod w/ stainless steel couplers (40mm diam. x 1.2m)

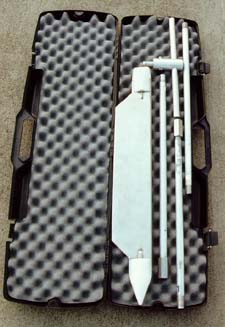

  • carry case
  • complete: $1350
  • Aluminum holobar extension rod w/ stainless steel couplers (40mm diam. x 2.4m): $150
  • Aluminum holobar extension rod w/ stainless steel couplers (40mm diam. x 1.2m): $110
  • Slide hammer assembly, bronze and stainless steel construction: $195

Optional Russian Peat Borer Sizes:

  • russian peat corer“Extra Long” 5.0 cm diameter x 100 cm long, 2 each- Aluminum Holobar Extension Rods, “T”-Handle, Double Shotgun Carry Case, complete: $1750
  • “Large Bore” 7.5 cm diameter x 50 cm long, 2 each- Aluminum Holobar Extension Rods, “T”-Handle, Double Shotgun Carry Case, complete: $1750


Citations

Faegri, K., and J. Jvesen. 1975. Textbook of Pollen Analysis. Third edition, Hafner, N.Y., N.Y. Urso, S.B, S.W. Nixon, J.K. Cochran, D.J. Hirschberg, and C. Hunt, 1989. Accretion rates and sediment accumulation in Rhode Island salt marshes. Estuaries 12(4) 300-317. Jowsey, P.C., 1966. An improved peat sampler. New Phytologist 65: 245-248.
