Water Samplers

vertical water sampler

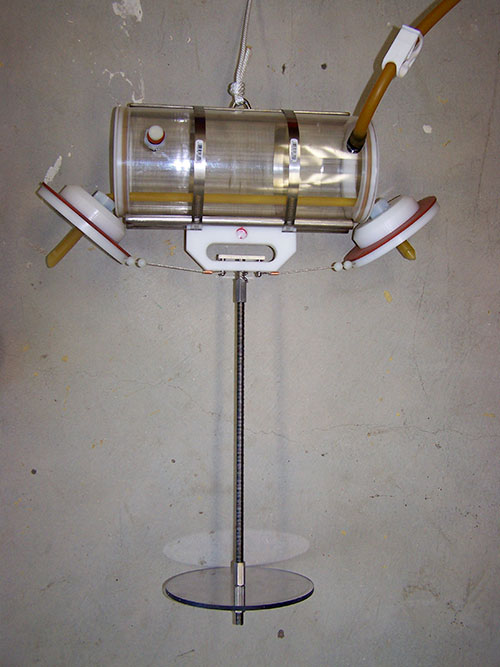

Vertical Point Water Sampler

  • General purpose water sampling of:
    • physical (temperature)
    • chemical (dissolved gasses, nutrients, metals)
    • and biological (photozooplankton) data
  • Freeflushing, non-metalic sample containment
  • Simple, sure-fire vertical release mechanism
  • multiple samplers on a single wire can be deployed for serial ("inseries") collection of water at various depths
  • Typical water samplers have three (3) basic characteristics:
    1. Orientation: vertical or horizontal
    2. Cylinder type: clear polycarbonate or opaque PVC
    3. Sampler volume: 2.2, 3.0 and 5.0 liters

Below is a list of our standard VERTICAL Water Samplers:

  • WATER SAMPLER, VERTICAL, CLEAR POLYCARBONATE X 2.2 LITERS:
    • Best suited for: general purpose water sampling, near bottom studies, and zooplankton collections.
    • 2.2 liter, clear polycarbonate cylinder
    • Silicone and polyethylene end seals (EPA approved for trace metals)
    • 10 cm diameter x 35 long
    • Stainless steel ballast weights
    • 20 meter line with line reel, solid bronze messenger x 333 gm
    • Toolbox carry case
    • Complete and ready to deploy
    • Complete: $310
  •

  • WATER SAMPLER, VERTICAL, CLEAR POLYCARBONATE X 3.0 LITERS
    • Best suited for: general purpose water sampling, near bottom studies, and zooplankton collections.
    • 2.2 liter, clear polycarbonate cylinder
    • Silicone and polyethylene end seals (EPA approved for trace metals),
    • 10 cm diam. x 45 long
    • Stainless steel ballast weights
    • 20 meter line with line reel, solid bronze messenger x 333 gm
    • Toolbox carry case,
    • Complete and ready to deploy
    • Complete: $370
  •

  • WATER SAMPLER, VERTICAL, CLEAR POLYCARBONATE X 5.0 LITERS
    • Best suited for: general purpose water sampling, near bottom studies, and zooplankton collections.
    • 2.2 liter, clear polycarbonate cylinder
    • Silicone and polyethylene end seals (EPA approved for trace metals)
    • 15 cm diameter x 35 long
    • Stainless steel ballast weights
    • 20 meter line with line reel, solid bronze messenger x 333 gm
    • Toolbox carry case
    • Complete and ready to deploy
    • Complete: $425
  •

  • WATER SAMPLER, VERTICAL, OPAQUE PVC X 2.2 LITERS
    • Best suited for: general purpose water sampling, near bottom studies, and zooplankton collections.
    • 2.2 liter, clear polycarbonate cylinder
    • Silicone and polyethylene end seals (EPA approved for trace metals)
    • 10 cm diameter x 35 long
    • Stainless steel ballast weights
    • 20 meter line with line reel, solid bronze messenger x 333 gm
    • Toolbox carry case
    • Complete and ready to deploy
    • Complete: $310
  •

  • WATER SAMPLER, VERTICAL, OPAQUE PVC X 3.0 LITERS
    • Best suited for: general purpose water sampling, near bottom studies, and zooplankton collections.
    • 2.2 liter, clear polycarbonate cylinder
    • Silicone and polyethylene end seals (EPA approved for trace metals)
    • 10 cm diam. x 45 long
    • Stainless steel ballast weights
    • 20 meter line with line reel, solid bronze messenger x 333 gm
    • Toolbox carry case
    • Complete and ready to deploy
    • Complete: $370
  •

  • WATER SAMPLER, VERTICAL, OPAQUE PVC X 5.0 LITERS
    • Best suited for: general purpose water sampling, near bottom studies, and zooplankton collections.
    • 2.2 liter, clear polycarbonate cylinder
    • Silicone and polyethylene end seals (EPA approved for trace metals)
    • 15 cm diameter x 35 long
    • Stainless steel ballast weights
    • 20 meter line with line reel, solid bronze messenger x 333 gm
    • Toolbox carry case
    • Complete and ready to deploy
    • Complete: $425

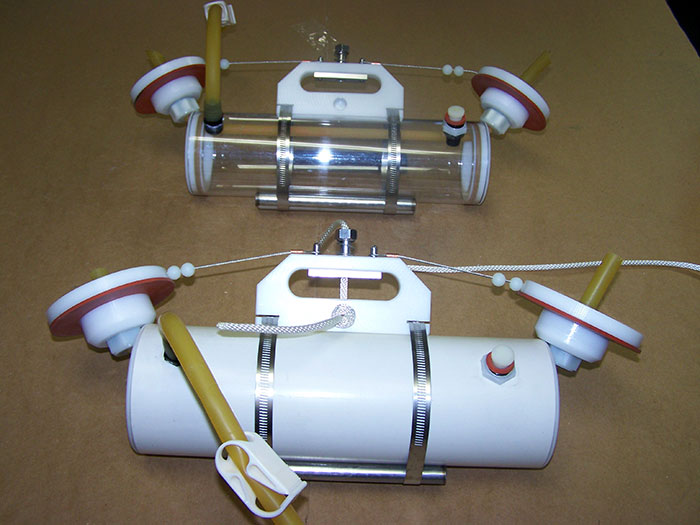

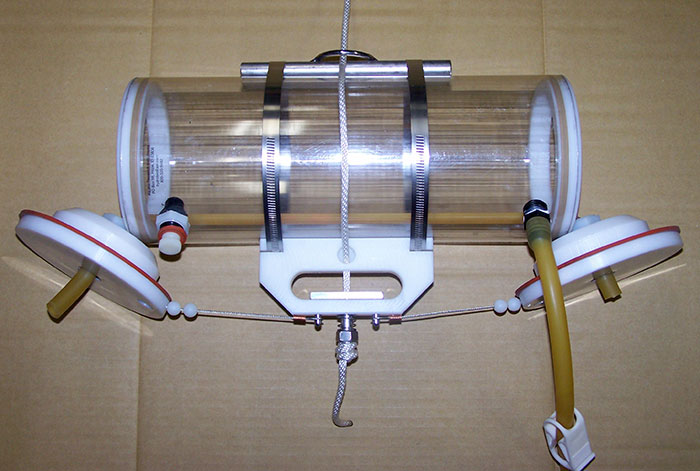

Horizontal Point Water Sampler

  • Thin-layer sampling of:
    • physical (temperature)
    • chemical (dissolved gasses, nutrients, metals)
    • and biological (phytobacterioplankton) data
  • Nonmetalic sample containment
  • Messenger activated horizontal release mechanism is easy to load
  • near bottom water recovery with bottom tripping assembly (optional)
  • horizontal release mechanism:
    • Polyethylene and stainless steel construction
    • simple, spring loaded release pins provides easy sampler loading and surefire operation
    • built-in heavy duty handle
    • single sampler attached to end of line
    • Typical water samplers have three (3) basic characteristics:
      1. Orientation: vertical or horizontal
      2. Cylinder type: clear polycarbonate or opaque PVC
      3. Sampler volume: 2.2, 3.0 and 5.0 liters

    Below is a list of our standard HORIZONTAL Water Samplers:

    • WATER SAMPLER, HORIZONTAL, CLEAR POLYCARBONATE X 2.2 LITERS:
      • Best suited for: general purpose water sampling, near bottom studies, and zooplankton collections.
      • 2.2 liter, clear polycarbonate cylinder
      • Silicone and polyethylene end seals (EPA approved for trace metals)
      • 10 cm diameter x 35 long
      • Stainless steel ballast weights
      • 20 meter line with line reel, solid bronze messenger x 333 gm
      • Toolbox carry case
      • Complete and ready to deploy
      • Complete: $310
    •

    • WATER SAMPLER, HORIZONTAL, CLEAR POLYCARBONATE X 3.0 LITERS
      • Best suited for: general purpose water sampling, near bottom studies, and zooplankton collections.
      • 2.2 liter, clear polycarbonate cylinder
      • Silicone and polyethylene end seals (EPA approved for trace metals),
      • 10 cm diam. x 45 long
      • Stainless steel ballast weights
      • 20 meter line with line reel, solid bronze messenger x 333 gm
      • Toolbox carry case,
      • Complete and ready to deploy
      • Complete: $370
    •

    • WATER SAMPLER, HORIZONTAL, CLEAR POLYCARBONATE X 5.0 LITERS
      • Best suited for: general purpose water sampling, near bottom studies, and zooplankton collections.
      • 2.2 liter, clear polycarbonate cylinder
      • Silicone and polyethylene end seals (EPA approved for trace metals)
      • 15 cm diameter x 35 long
      • Stainless steel ballast weights
      • 20 meter line with line reel, solid bronze messenger x 333 gm
      • Toolbox carry case
      • Complete and ready to deploy
      • Complete: $425
    •

    • WATER SAMPLER, HORIZONTAL, OPAQUE PVC X 2.2 LITERS
      • Best suited for: general purpose water sampling, near bottom studies, and zooplankton collections.
      • 2.2 liter, clear polycarbonate cylinder
      • Silicone and polyethylene end seals (EPA approved for trace metals)
      • 10 cm diameter x 35 long
      • Stainless steel ballast weights
      • 20 meter line with line reel, solid bronze messenger x 333 gm
      • Toolbox carry case
      • Complete and ready to deploy
      • Complete: $310
    •

    • WATER SAMPLER, HORIZONTAL, OPAQUE PVC X 3.0 LITERS
      • Best suited for: general purpose water sampling, near bottom studies, and zooplankton collections.
      • 2.2 liter, clear polycarbonate cylinder
      • Silicone and polyethylene end seals (EPA approved for trace metals)
      • 10 cm diam. x 45 long
      • Stainless steel ballast weights
      • 20 meter line with line reel, solid bronze messenger x 333 gm
      • Toolbox carry case
      • Complete and ready to deploy
      • Complete: $370
    •

    • WATER SAMPLER, HORIZONTAL, OPAQUE PVC X 5.0 LITERS
      • Best suited for: general purpose water sampling, near bottom studies, and zooplankton collections.
      • 2.2 liter, clear polycarbonate cylinder
      • Silicone and polyethylene end seals (EPA approved for trace metals)
      • 15 cm diameter x 35 long
      • Stainless steel ballast weights
      • 20 meter line with line reel, solid bronze messenger x 333 gm
      • Toolbox carry case
      • Complete and ready to deploy
      • Complete: $425

    pore

    pore

    pore

    pore

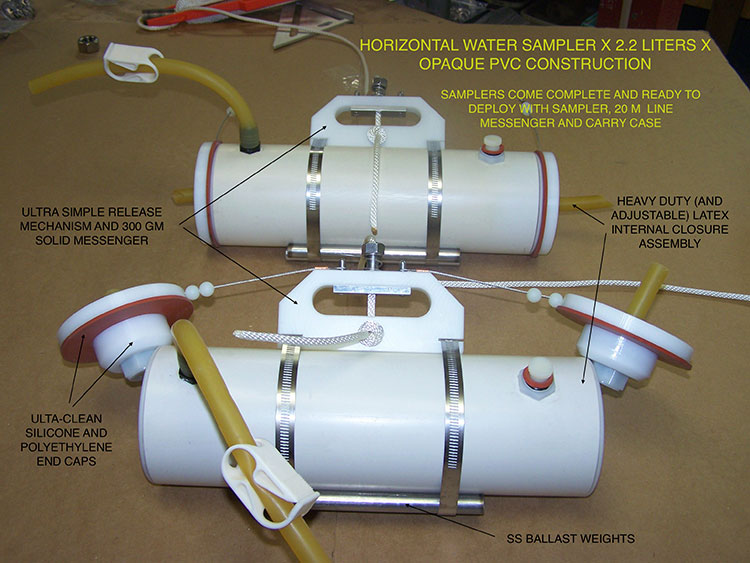

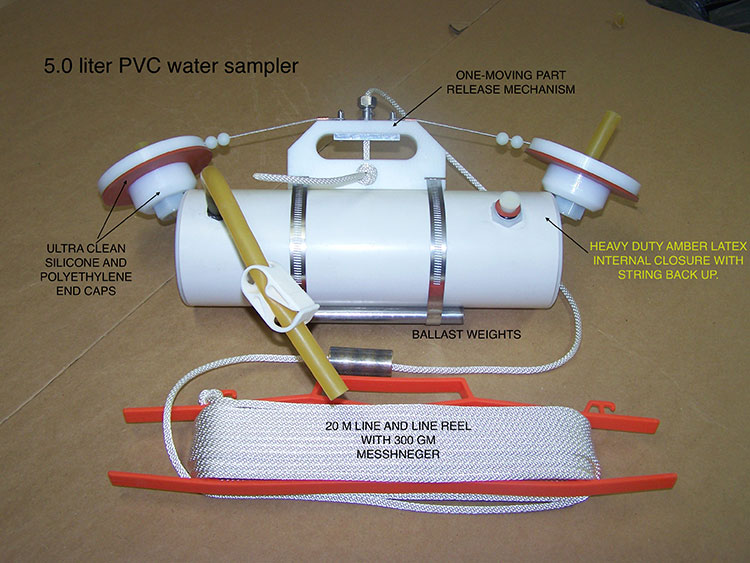

PVC constructionPVC DISCRETE POINT WATER SAMPLERS

  • Horizontal or vertical orientation
  • opaque PVC and polyethylene construction
  • silicone end seals
  • heavy duty amber latex internal closure
  • vertical point samplerstainless steel lanyards
  • simple single-moving-part release mechanism
  • solid bronze messenger (300 gm)
  • 20 m calibrated line (0.5 m increments)
  • linereel
  • padded toolbox carry case
  • 2.2 liter capacity
  • complete $310
  • Other sampler volumes available (complete, as above):
    • 3.0 liter ($350)
    • 5.0 liter ($400)
    • and 10 liter ($500)
  • Internally mounted thermometers with armored case (centigrade, 5 to 45 degrees, liquid spirt filled): $60.

Notes: Designed for general limnological uses and light sensitive studies of phytoplankton and bacterioplankton. Inseries sampling possible with vertical models and optional bronze split-messengers. Horizontal models useful for thin layer or near bottom sampling.

Heavy-duty latex internal closure is easily tightened or replaced with a simple, “threadon” assembly.


POLYCARBONATE POINT WATER SAMPLERS

  • water samplers Horizontal or vertical orientation
  • clear polycarbonate and polyethylene construction
  • ultraclean silicone end seals
  • heavy-duty amber latex internal closure
  • stainless steel lanyards
  • water samplerssimple single-moving-part release mechanism
  • solid bronze messenger (300 gm)
  • 20 m calibrated line (0.5 m increments)
  • linereel, padded toolbox carry case
  • 2.2 liter capacity
  • complete $310
  • Internally mounted thermometers with armored case (centigrade, 5 to 45 degrees, liquid spirt filled): $60.
  • Other sampler volumes available (complete, as above): 3.0 liter ($350), 5.0 liter ($425).

Notes: Designed for general limnological use where sampler clarity is important (zooplankton collection, near bottom water recovery w/o contamination, hydrogen sulfide…).

EPA approved for ultraclean analysis of water. Inseries sampling possible with vertical models and optional bronze split-messengers. Horizontal models useful for thin layer or near bottom sampling.

Horizontal samplers can be inverted and actuated with a sharp tug on towline with a “Toggle Release” (above right, included).

This is very useful when deploying a sampler from a bridge where currents deflect the towline and the messenger can not effectively hit the release mechanism.

Heavy-duty latex internal closure is easily tightened or replaced with a simple “thread-on” assembly.




Optional Equipment

  • Extra Line and line reels ($39 / 20 meter section)
  • Directional Fin for horizontal water samplers in flowing waters ($75)
  • Bottom Tripping Mechanism with pad for automatic actuation near mud-water interface ($145)
  • Internal Mounted Thermometers ($65) (-5 to 50 degrees centigrade liquid spirit filled, armored case, mounted in inside of clear samplers only)
  • Pull-type Closing Assembly for deploying sampler off bridge without use of messenger. Sharp tug on line actuates close of sampler ($55)

pore

pore
