Secure Online Shopping for STREAM & RIVER PLANKTON NETS

Stream Sediment and Drift Samplers

• Quantitative macroinvertebrate investigations
• Suitable for sediments from silt to large cobble

Surber Sampler Includes:

• collapsible brass net frame
• 31 cm x 31 cm
• heavy duty Nitex assembly nylon net
• 250µm, 500µm or 1000µm
• sewn-in poly-bottle cod end OR 2-piece cod end assembly available
• nylon carrying bag

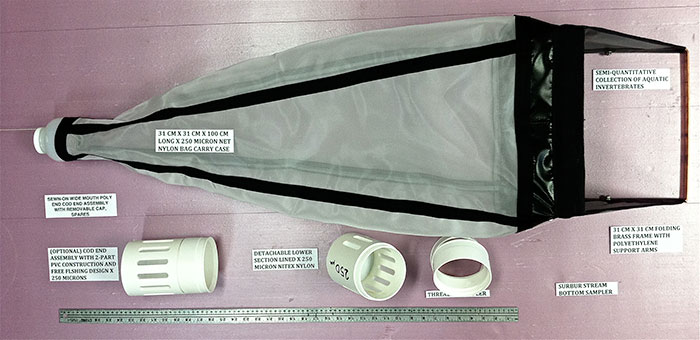

Standard Surbur Stream Bottom Sampler

• 31 cm x 31 cm folding frame assembly
• 31 cm x 31 cm x 100 cm x 250, 500, or 1000 micron plankton net
• Poly bottle “sewn-in“ cod end bottle (or optional detachable cod end assembly)
• Nylon Bag Carry case
• Ready to deploy

Large Mouth Surbur "Slack" Stream Bottom Sampler

• 50 cm x 50 cm folding frame assembly
• 50 cm x 50 cm x 150 cm x 250 (500 or 1000) micron plankton net
• Poly bottle “sewn-in“ cod end bottle (or optional detachable cod end assembly)
• Aluminum extension rod x 1.5 m long
• Nylon Bag Carry case
• Ready to deploy

Optional Equipment

• Two piece cod end assembly (Detachable and mesh lined)
• Designed for quantitative analysis where sample is flushed from net body
• 2-piece PVC design with detachable lower section with lateral apertures and lined x (specified) micron mesh
• CNC computer made ” threaded coupler” with band clamp
• 11cm (1000 ml) x 17 cm long X any specified mesh.

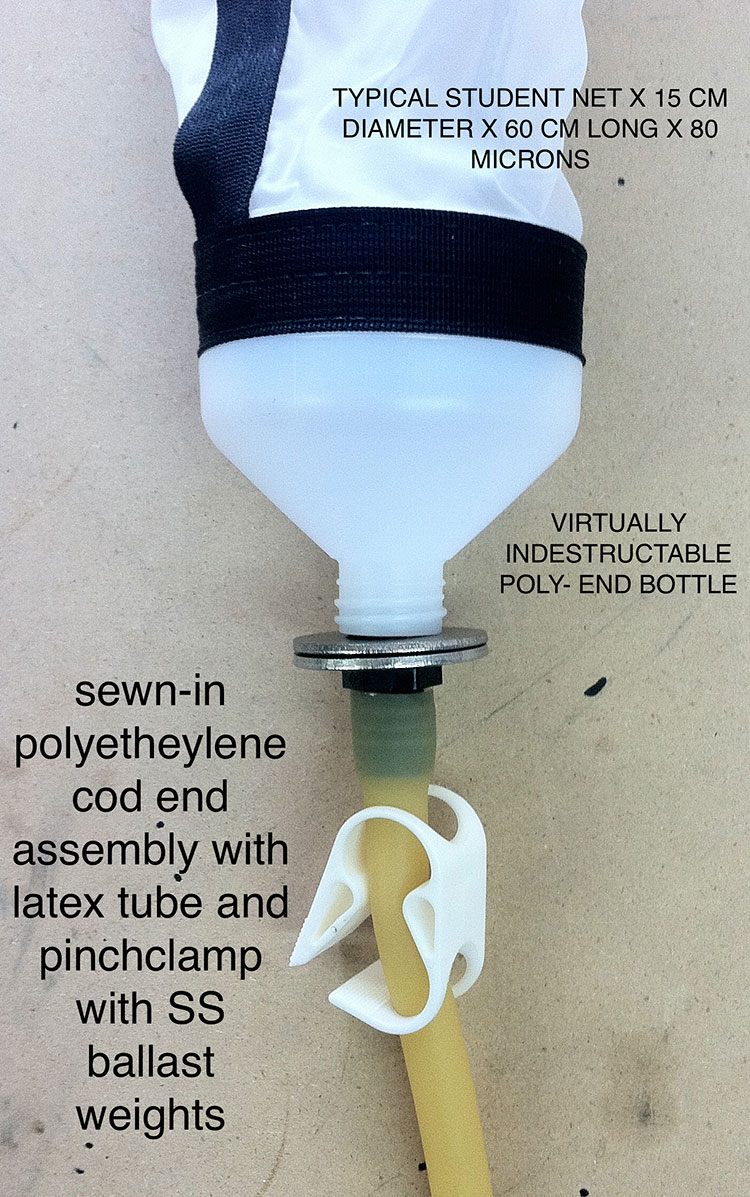

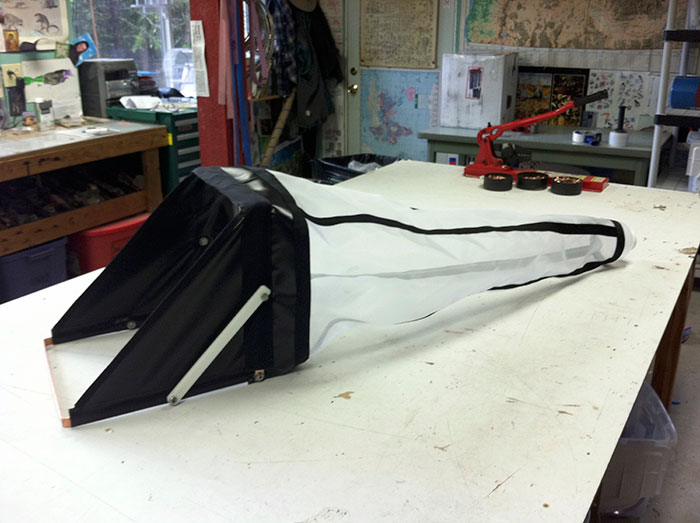

Typical Surbur Samplers w/Sewn_In Poly-End Bottle Cod Ends

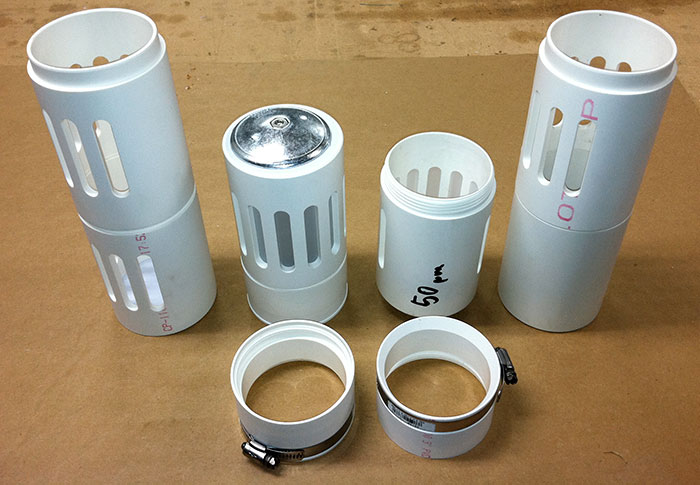

Cod End Options

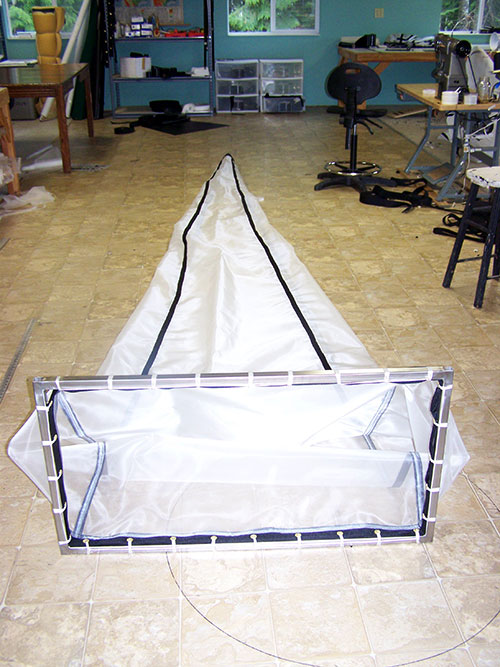

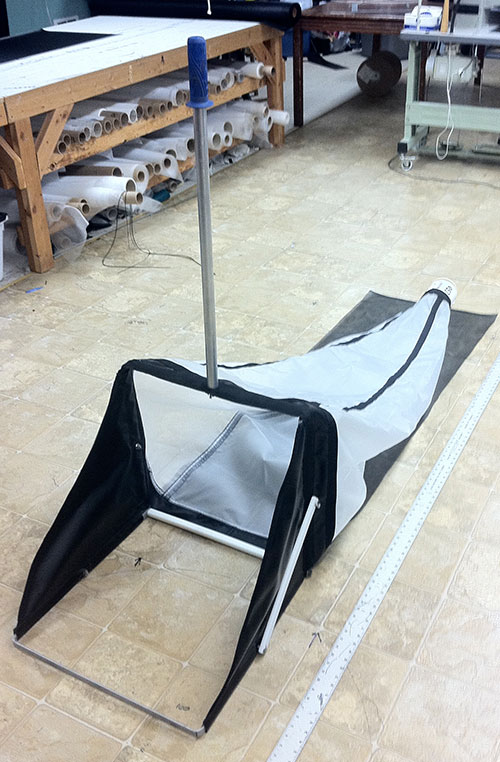

Large Surbur Sampler w/50cm x 50cm Frame

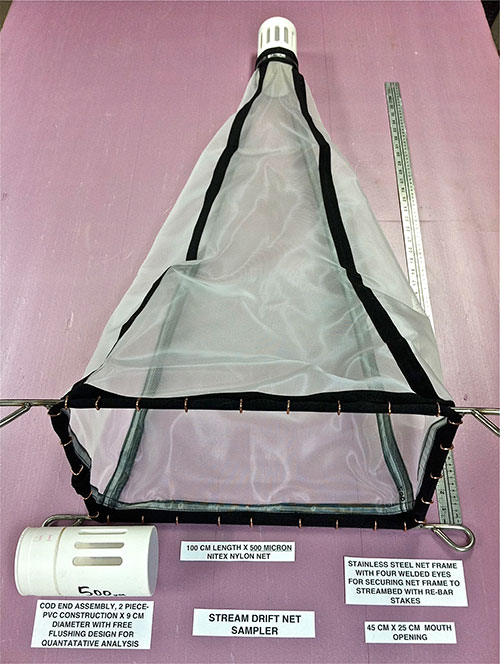

Standard Stream Drift Net (0.1 square meter opening)

• 45 cm (w) x 25 cm (h) x 100 cm (l) x 500 OR 250 microns
• SS frame with welded eyelets for mounting frame to stake frame into streambed (rebar stakes not included)
• Sewn-in poly end wide mouth bottle w/ caps & spares (or optional detachable cod end assembly)
• Ready to deploy

Stream Drift Net (1.0 square foot mouth opening)

• 31 cm (w) x 31 cm (h) x 100 cm (l) x 500 or 250 microns
• SS frame with welded eyelets for mounting frame to stake frame into streambed (rebar stakes not included)
• Sewn-in poly end wide mouth bottle w/ caps & spares (or optional detachable cod end assembly)
• Ready to deploy

Custom Drift Nets

• Specify: mouth opening, net length and mesh size
• SS square tubing frame for mounting frame to stake frame into streambed (rebar stakes not included)
• Sewn-in poly end wide mouth bottle w/ caps & spares (or optional detachable cod end assembly)
• Call or write for quotation

Optional Equipment

• Two piece cod end assembly (Detachable and mesh lined)
• Designed for quantitative analysis where sample is flushed from net body
• 2-piece PVC design with detachable lower section with lateral apertures and lined x (specified) micron mesh
• CNC computer made ” threaded coupler” with band clamp
• 11cm (1000 ml) x 17 cm long

Custom Drift Net Includes:

• stainless steel net frame with eyelets
• any mouth opening and length
• two steel anchoring stakes
• heavy duty Nitex net
• square tubing construction (SS)
• specify any mesh size OR 2-pv pvc cod ends
• sewn-in poly-bottle cod end

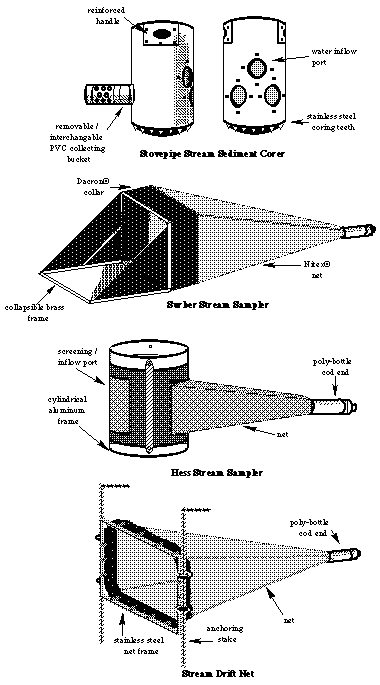

Other Stream Bottom Samplers Available (please call or write for details)

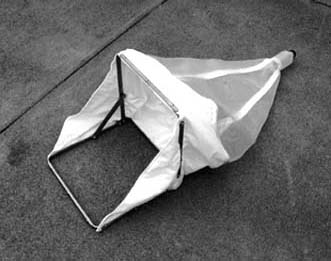

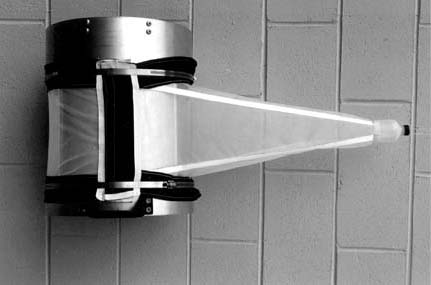

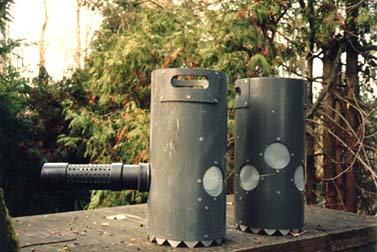

Surbur Sampler	Hess Sampler	Stove Pipe Stream Sampler
